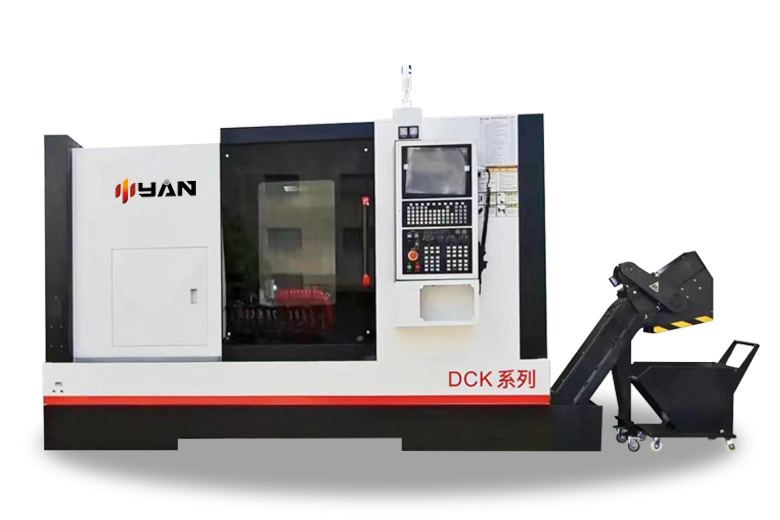

Slant Lathe Bed Hard Rail CNC Lathe

Product Description

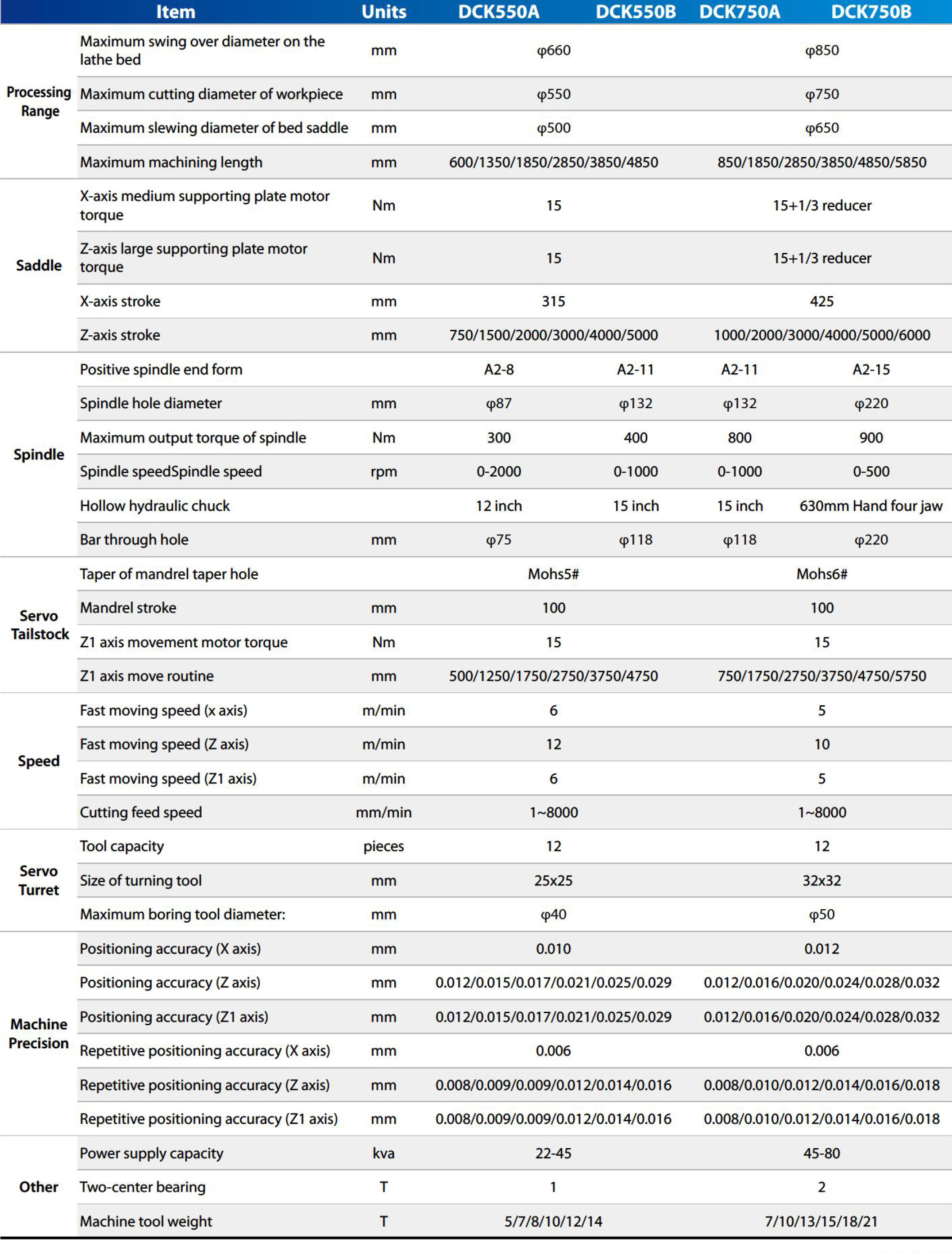

Matching Parameters

C Turning Center-Power Turret		Cy Turning And Milling Combined-Y Axis Power Turret
Turret specifications:	55BMT(DCK550)/65BMT (DCK750)	Turret specifications:	55BMT(DCK550)/65BMT (DCK750)
Maximum torque of power motor:	45Nm (DCK550)/68Nm (DCK750)	Maximum torque of power motor:	45Nm (DCK550)/68Nm(DCK750)
Tool capacity:	12 pieces	Y-axis route:	±50mm(DCK550)/±100mm(DCK750)
Turning tool body size:	2525mm(DCK550)/3232mm(DCK750)	Tool capacity:	12 pieces
Maximum boring tool diameter:	φ40mm (DCK550)/φ50mm(DCK750)	Turning tool body size:	2525mm(DCK550)/3232mm(DCK750)
		Maximum boring tool diameter:	φ40mm(DCK550)/φ50mm(DCK750)

S Double Spindle-Servo Sub-Spindle
Chuck:	10 inch hollow hole φ52(DCK550-750) 10 inch solid (DCK550-1500/2000/3000/4000/5000) 12 inch hollow φ75(DCK750-1000) 12 inch solid (DCK750-2000/3000/4000/5000/6000)
Maximum output torque of spindle:	105Nm (DCK550-750);230Nm (DCK550-750) 35Nm (DCK550-1500/2000/3000/4000/5000 DCK750-2000/3000/4000/5000/6000)
Motor torque of Z1 axis tailstock moving:	15Nm+1/3 reducer
Movement route of Z1 axis tailstock:	500/1250/1750/2750/3750/4750mm (DCK550) 750/1750/2750/3750/4750/5750mm(DCK750)
